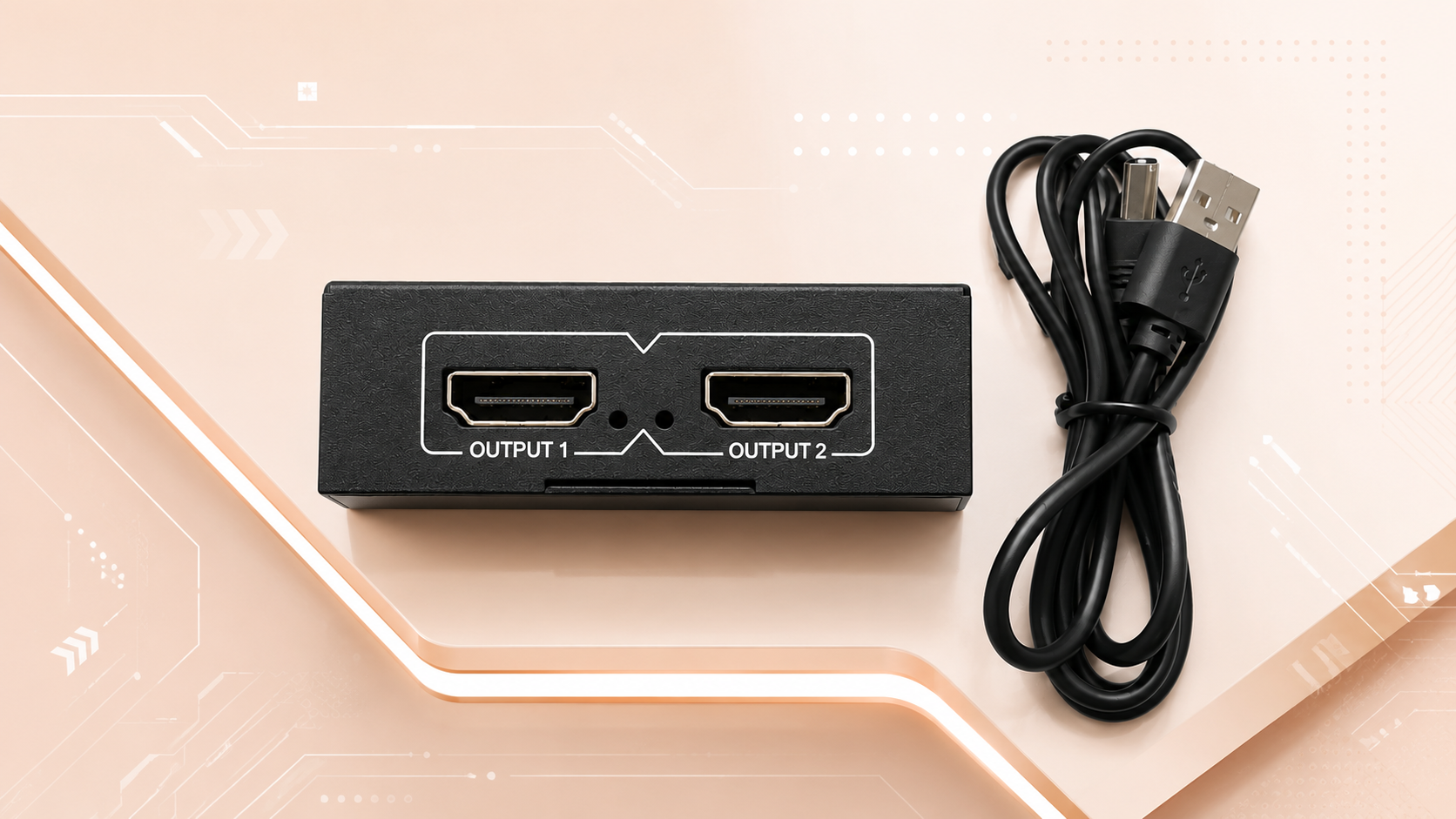

HDMI Splitter 1x2 – 4K Ultra HD HDMI Splitter

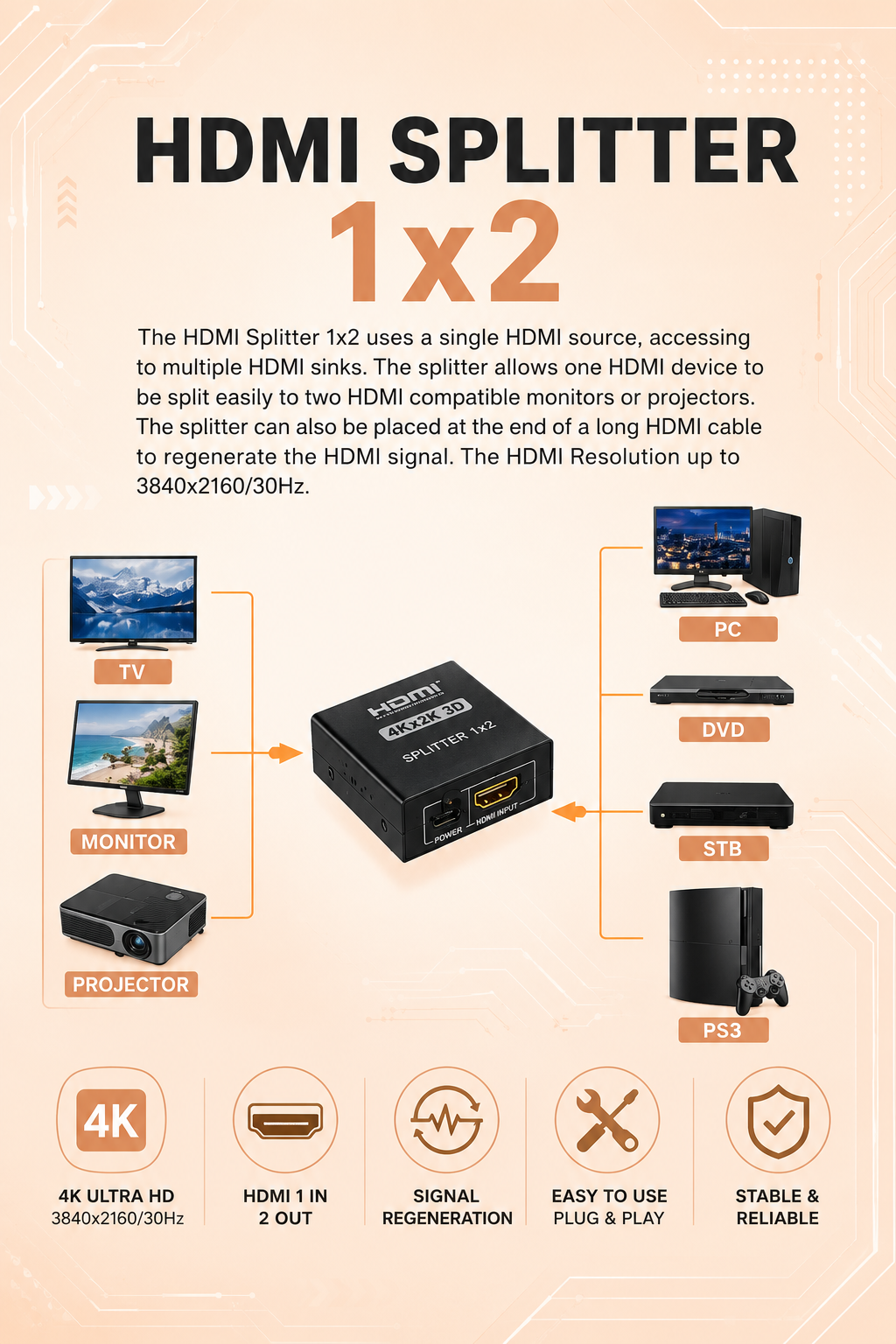

Expand a single HDMI source to two HDMI displays with this HDMI Splitter 1x2. It allows one HDMI input device to simultaneously output to two HDMI-compatible TVs, monitors, or projectors while maintaining high-definition video and audio quality. The splitter can also regenerate HDMI signals, making it ideal for longer cable runs without compromising performance.
Perfect for home entertainment systems, offices, conference rooms, classrooms, digital signage, gaming setups, and multimedia presentations.
Key Features
- Supports HDMI 1.4b standard
- Supports Full 3D video
- Supports resolutions up to 3840 × 2160 @ 30Hz (4K Ultra HD)
- Maximum bandwidth of 340MHz
- Maximum baud rate of 3.4Gbps
- Supports 8-bit, 10-bit, and 12-bit Deep Color
- Supports HDMI cable lengths up to 8 metres (AWG26) for both input and output
- Displays one HDMI source on two HDMI displays simultaneously
- Compatible with DVD players, A/V receivers, set-top boxes, PCs, gaming consoles, and more
- Plug & Play installation
- Signal regeneration for improved long-distance transmission
- Stable and reliable performance
Compatible Devices
Input Devices
- PC / Computer
- DVD Player
- Set-Top Box (STB)
- PS3 and compatible gaming consoles
- Blu-ray Players
- Media Players
Output Devices

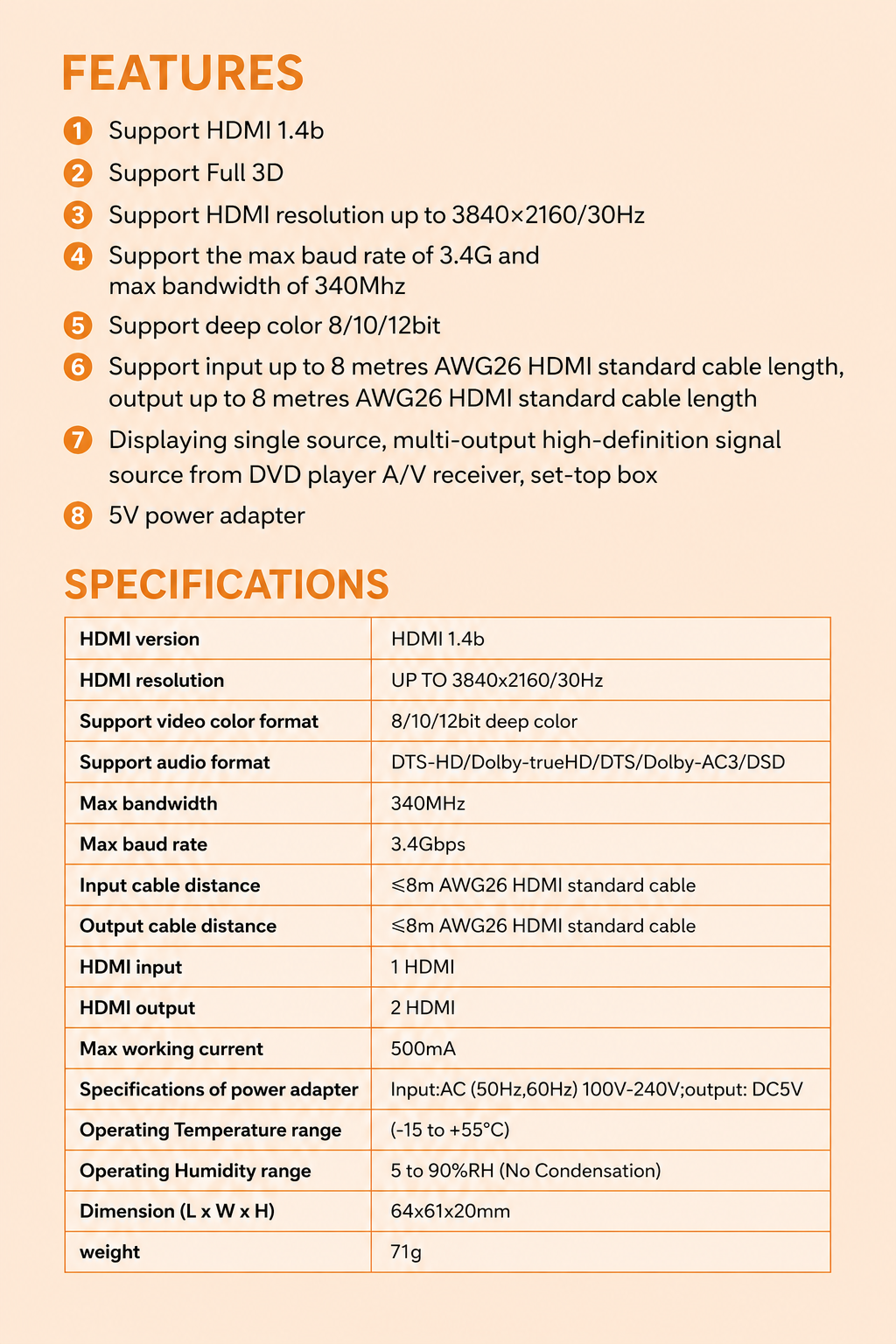

Technical Specifications
| Specification |
Details |
| HDMI Version |
HDMI 1.4b |
| Maximum Resolution |
Up to 3840 × 2160 @ 30Hz |
| Video Colour Format |
8/10/12-bit Deep Color |
| Audio Format |
DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD |
| Maximum Bandwidth |
340MHz |
| Maximum Baud Rate |
3.4Gbps |
| Input Cable Distance |
Up to 8m (AWG26 HDMI Cable) |
| Output Cable Distance |
Up to 8m (AWG26 HDMI Cable) |
| HDMI Input |
1 × HDMI |
| HDMI Outputs |
2 × HDMI |
| Maximum Working Current |
500mA |
| Power Adapter Input |
AC 100–240V, 50/60Hz |
| Power Adapter Output |
DC 5V |
| Operating Temperature |
-15°C to +55°C |
| Operating Humidity |
5%–90% RH (Non-condensing) |
| Product Dimensions |
64 × 61 × 20 mm |
| Weight |
71 g |
Package Includes
- 1 × HDMI Splitter 1x2
- 1 × USB Power Cable
- 1 × User Manual
This HDMI Splitter is an excellent solution for distributing a single HDMI signal to two displays with 4K Ultra HD support, plug-and-play convenience, and stable, high-quality performance.
