Compact, rugged, and ready for the toolbox, the TIS 258 is a 2000-count pocket multimeter built to handle everyday diagnostic work. Measure AC/DC voltage up to 600 V, DC current up to 10 A, resistance to 2 MΩ, and temperatures from -20 °C to 1000 °C. A data-hold function, continuity buzzer, and diode-test mode streamline troubleshooting on the go.
Key Features
-
Wide Measurement Range – AC/DC V to 600 V, DC A to 10 A, resistance to 2 MΩ, and built-in thermocouple input.
-
2000-Count Backlit Display – Clear, easy-to-read digits with data-hold for capturing transient values.
-
Continuity & Diode Check – Audible buzzer (< 50 Ω) plus 2.7 V diode test for quick component verification.
-
Safety & Compliance – CE-certified, CAT II 600 V, RoHS compliant for peace of mind on residential and light-industrial circuits.
-
Pocket-Sized Durability – Measures just 145 × 76 × 40 mm and weighs 202 g; powered by a single included 9 V battery.
Electrical Specifications
| Function | Ranges | Accuracy* |
|---|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V (±0.5 % + 3 dgt) • 600 V (±0.8 % + 5 dgt) | |
| AC Voltage | 200 V / 600 V (±0.8 % + 3 dgt) | |
| DC Current | 20 µA / 200 µA / 2 mA / 20 mA / 200 mA (±0.8 % + 2 dgt) • 10 A (±1.2 % + 2 dgt) | |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ (±0.8 % + 1 dgt) • 2 MΩ (±1.0 % + 2 dgt) | |
| Temperature | -20 °C – 1000 °C (±2.0 % + 2 °C) |
*Accuracy stated as ±(% of reading + digits).

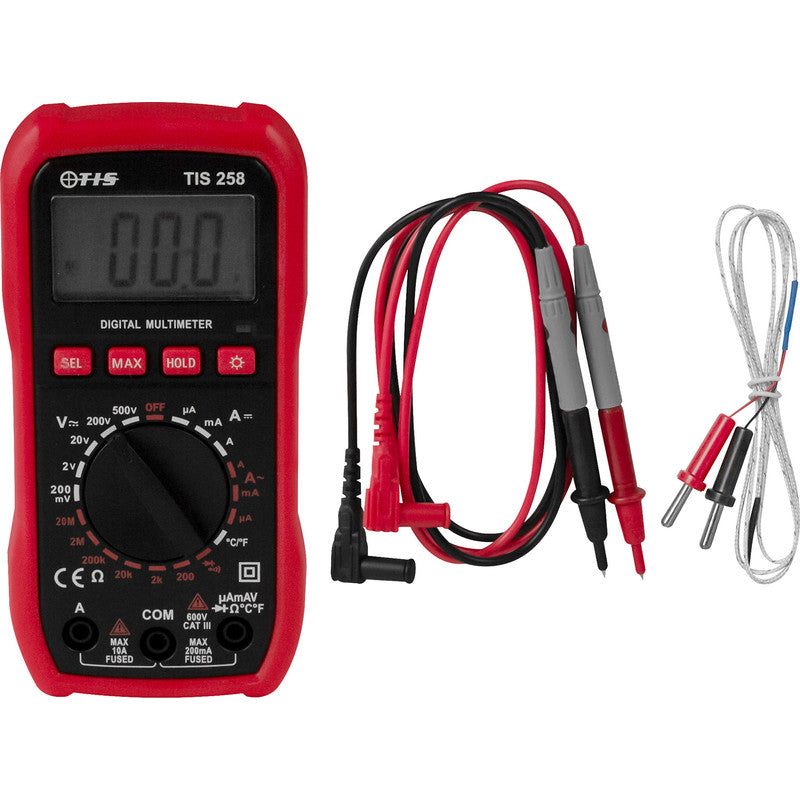

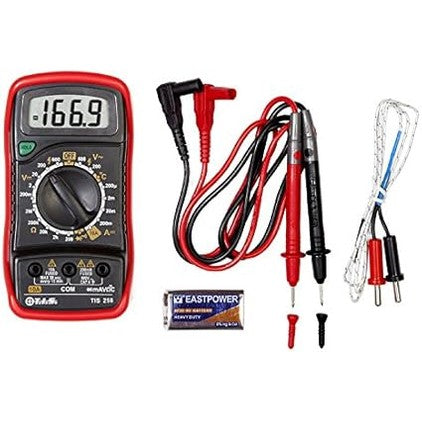

What’s in the Box
-
TIS 258 digital multimeter
-
K-type temperature probe
-
Test leads
-
9 V battery (pre-installed)
-
User manual
Technical Details
-
Model / Part No.: TIS 258
-
Display: 2000 counts
-
Power: 1 × 9 V 6F22 battery
-
Dimensions: 145 × 76 × 40 mm
-
Weight: 202 g
-
EAN: 5060508210054
-
ASIN: B0727YS6JB
Ideal for electricians, hobbyists, and DIY enthusiasts who need reliable measurements in a compact form factor.
